Air Cooled Condenser

The air-cooled condensers are suitable for various applications: commercial and industrial refrigeration and air conditioning. Cold stores, chill facilities etc.

NEW Air cooled condensers, 20 to 380 kw heat rejection.

Flat bed range 20 to 360 kw

The single row of fans and narrow V angle make it ideal for installation requiring a high capacity density – small footprint.

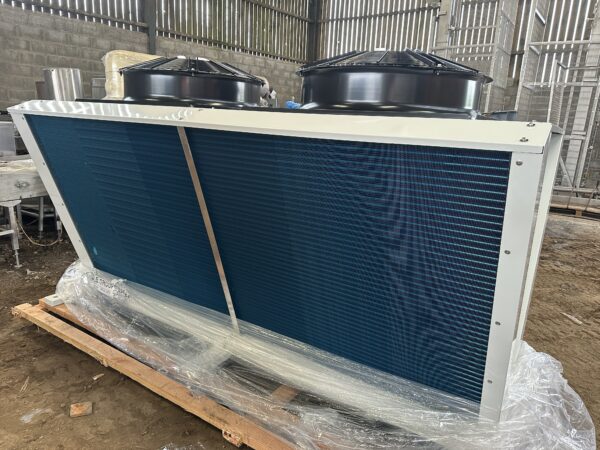

V Air Cooled Condenser

Available in either horizontal or vertical air discharge orientation.

Large surface area coil is ideally positioned to optimise airflow and heat transfer, manufactured from refrigeration quality copper tube.

Applications include refrigeration compressor packs, water chillers, industrial and commercial refrigeration plant, heat exchanges for warehouse heating

CV series condenser adopts V-shaped structure design, with air inlet on both sides and air outlet on the top, with a larger windward surface; It is mainly used for piston parallel units or screw units with large heat exchange demand and remote installation.

This series of products has the following characteristics:

Casing：high quality galvanized steel plate with silver powder coating (RAL7001), with strong corrosion
The long air duct design with integral stretch arc has good air flow effect and excellent product
Heat exchanger end plate adopts aluminum plate, effectively protect copper
Coil：diameter φ9.5 inner thread copper pipe, pipe spacing 25×21.65 triangle arrangement, high heat exchange
Corrugated fins with film coated aluminum, fin spacing 1mm.
Fans： Standard design 3P/380V/50Hz power supply, adopt φ630 external rotor fan, number 1-6, with 4-pole or 6-pole motor,

φ630 external rotor fan, number 1-5, with 6-pole motor.

Product test pressure
Suitable for R404A, R507A, R448A, R449A, R134a, R22 and other

CV SERIES AIR COOLED CONDENSER
